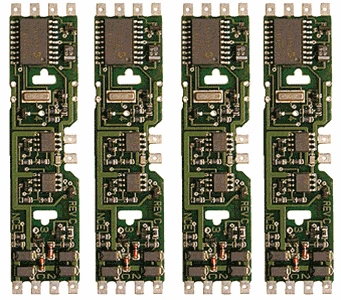

NCE 524107 (DApack) Four Pack Of DA-SR Decoders

4 pack of DA-SR decoders for Atlas GP38, GP40, RS1/2/3, C424/5, GP7, RSD4/5/12, C30-7, U23B, U33/36C, Athearn HO “Genesis” series locomotives; F7, F3, SD70, SD75, SD80, etc. Kato HO GP35, SD40, C44-9W Stewart AS16, F3A, F3B, F7A, F7B, F9A, F9B, U25B

Dimensions: 2.85″ x .65″ x .125″

This is an EPF (extended packet format) decoder supporting:
Silent Running(TM) motor driveImproved DC operation (with lighting effects)
Torque Compensation (dither) for ultra smooth low speed performance
Programmable Start, Mid and Maximum speed works for all speed modes
Motor rating 1.3 Amp continuous, 2 Amp peak (stall)
All five function outputs have lighting effects generators
Select from 15 different lighting effects (Mars, strobes, beacon, flicker, etc)
Lighting outputs can be mapped to different functions
Uploadable speed table interpolated to 128 speed steps
Decoder assisted consisting
Support for all forms of DCC programming
Decoder programming lock mechanism
Brake on DC feature assists automatic train control
